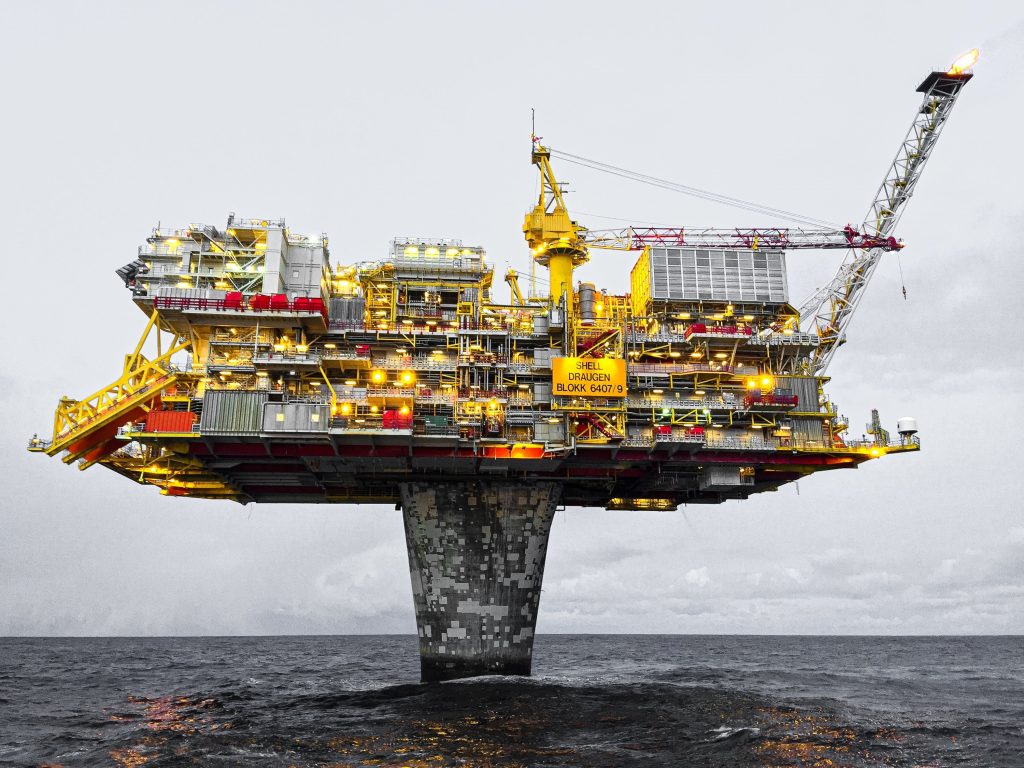

ONSHORE & OFFSHORE DRILLING RIGS EQUIPMENT'S
  • DC MOTOR DRIVEN DRILLING RIGS
  • AC VARIABLE FREQUENCY MOTOR DRIVEN DRILLING RIGS
  • MECHANICAL DRIVEN DRILLING RIGS
  • MECHANICAL & ELECTRIC COMBINED DRILLING RIGS
  • MACRO MODULAR CARRYING RIG
Conversational pumping unit
  • donkey head
  • donkey-head safety gear levers
  • beam hangers
  • steel wire rope
  • walking beams
  • tail bearing assembly
  • cross girders
  • walking beam support assembly
  • connecting rod
  • cranks
  • crank pin assembly
  • counterbalances
  • reducer belt pulleys
  • brake devices
  • vertical pull rods
  • brake handles
  • motor guide rails
  • lower motor guide rails
  • high pedestals
  • front supports for bracket
  •  ladders

Tower switched reluctance motor pumping unit

Design Features

Working principle: this oil pumping unit has a switched reluctance drive placed on top of tower as a power unit. The driving system includes reducer, belt roller, reversed roller, and forward and reverse winding belt. Scale shape is applied for pump load and weight box. Operation parameters can be set from the window of touch screen. Control automatic forward and reverse operation of motor, drive the belt through drive system, realize reciprocating ascending & descending movement of oil pumping rod, and complete oil pumping.
